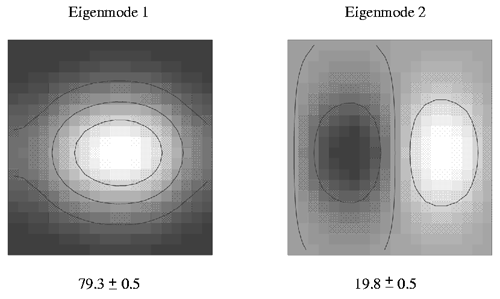

Figure 3.
First two mean eigenvectors for 25 different noise seeds for PCA done over an interval of 20000 timesteps (2 seconds) on the 20 x 20 lattice simulation of physiological model. Input and other conditions as for Figure 2. The numbers beneath the images indicate the percentage of variance associated with each eigenvector and the standard error on the basis of 25 runs.
