Various EEG File Formats and Conventions

Documented by Paul Bourke


NeuroScan EEG File Formats

April 1997, updated September 1997
Continuous EEG

The following documents the file structure for continuous EEG files as created by SCAN version 4 (the files are still reported as version 3 as the format hasn't changed).

Experience has shown that many (most) of the fields are not filled out correctly by the software. In particular, the best way to work out the number of samples is

nsamples = SETUP.EventTablePos - (900 + 75 * nchannels) / (2 * nchannels)

Sample code to convert continuous eeg files to ascii, cnt2ascii.c (sethead.h).

Average EEG

To calculate the expected number of samples from the file size

nsamples = ((filesize - 900 - nchannels*75) / nchannels - 5) / 4;

Sample code to convert average files to ascii, avg2ascii.c sethead.h

The following is my version of the "sethead.h" file, designed to make implementations on other machines easier, namely "other-endian" machines. Note that character fields are single byte, longs are 4 bytes, floats are 4 bytes IEEE format, short ints are 2 bytes.


typedef struct {               /* Electrode structure  ------------------- */
   char  lab[10];              /* Electrode label - last bye contains NULL */
   char  reference;            /* Reference electrode number               */
   char  skip;                 /* Skip electrode flag ON=1 OFF=0           */
   char  reject;               /* Artifact reject flag                     */
   char  display;              /* Display flag for 'STACK' display         */
   char  bad;                  /* Bad electrode flag                       */
   unsigned short int n;       /* Number of observations                   */
   char  avg_reference;        /* Average reference status                 */
   char  ClipAdd;              /* Automatically add to clipboard           */
   float x_coord;              /* X screen coord. for 'TOP' display        */
   float y_coord;              /* Y screen coord. for 'TOP' display        */
   float veog_wt;              /* VEOG correction weight                   */
   float veog_std;             /* VEOG std dev. for weight                 */
   float snr;                  /* signal-to-noise statistic                */
   float heog_wt;              /* HEOG Correction weight                   */
   float heog_std;             /* HEOG Std dev. for weight                 */
   short int baseline;         /* Baseline correction value in raw ad units*/
   char  Filtered;             /* Toggel indicating file has be filtered   */
   char  Fsp;                  /* Extra data                               */
   float aux1_wt;              /* AUX1 Correction weight                   */
   float aux1_std;             /* AUX1 Std dev. for weight                 */
   float sensitivity;          /* electrode sensitivity                    */
   char  Gain;                 /* Amplifier gain                           */
   char  HiPass;               /* Hi Pass value                            */
   char  LoPass;               /* Lo Pass value                            */
   unsigned char Page;         /* Display page                             */
   unsigned char Size;         /* Electrode window display size            */
   unsigned char Impedance;    /* Impedance test                           */
   unsigned char PhysicalChnl; /* Physical channel used                    */
   char  Rectify;              /* Free space                               */
   float calib;                /* Calibration factor                       */
} ELECTLOC;

typedef struct{
   char   rev[20];              /* Revision string                         */
   char   type;                 /* File type AVG=1, EEG=0                  */
   char   id[20];               /* Patient ID                              */
   char   oper[20];             /* Operator ID                             */
   char   doctor[20];           /* Doctor ID                               */
   char   referral[20];         /* Referral ID                             */
   char   hospital[20];         /* Hospital ID                             */
   char   patient[20];          /* Patient name                            */
   short  int age;              /* Patient Age                             */
   char   sex;                  /* Patient Sex Male='M', Female='F'        */
   char   hand;                 /* Handedness Mixed='M',Rt='R', lft='L'    */
   char   med[20];              /* Medications                             */
   char   classif[20];          /* Classification                          */
   char   state[20];            /* Patient wakefulness                     */
   char   label[20];            /* Session label                           */
   char   date[10];             /* Session date string                     */
   char   time[12];             /* Session time strin                      */
   float  mean_age;             /* Mean age (Group files only)             */
   float  stdev;                /* Std dev of age (Group files only)       */
   short int n;                 /* Number in group file                    */
   char   compfile[38];         /* Path and name of comparison file        */
   float  SpectWinComp;         /* Spectral window compensation factor     */
   float  MeanAccuracy;         /* Average respose accuracy                */
   float  MeanLatency;          /* Average response latency                */
   char   sortfile[46];         /* Path and name of sort file              */
   long   NumEvents;            /* Number of events in eventable           */
   char   compoper;             /* Operation used in comparison            */
   char   avgmode;              /* Set during online averaging             */
   char   review;               /* Set during review of EEG data           */
   short unsigned nsweeps;      /* Number of expected sweeps               */
   short unsigned compsweeps;   /* Number of actual sweeps                 */
   short unsigned acceptcnt;    /* Number of accepted sweeps               */
   short unsigned rejectcnt;    /* Number of rejected sweeps               */
   short unsigned pnts;         /* Number of points per waveform           */
   short unsigned nchannels;    /* Number of active channels               */
   short unsigned avgupdate;    /* Frequency of average update             */
   char  domain;                /* Acquisition domain TIME=0, FREQ=1       */
   char  variance;              /* Variance data included flag             */
   unsigned short rate;         /* D-to-A rate                             */
   double scale;                /* scale factor for calibration            */
   char  veogcorrect;           /* VEOG corrected flag                     */
   char  heogcorrect;           /* HEOG corrected flag                     */
   char  aux1correct;           /* AUX1 corrected flag                     */
   char  aux2correct;           /* AUX2 corrected flag                     */
   float veogtrig;              /* VEOG trigger percentage                 */
   float heogtrig;              /* HEOG trigger percentage                 */
   float aux1trig;              /* AUX1 trigger percentage                 */
   float aux2trig;              /* AUX2 trigger percentage                 */
   short int heogchnl;          /* HEOG channel number                     */
   short int veogchnl;          /* VEOG channel number                     */
   short int aux1chnl;          /* AUX1 channel number                     */
   short int aux2chnl;          /* AUX2 channel number                     */
   char  veogdir;               /* VEOG trigger direction flag             */
   char  heogdir;               /* HEOG trigger direction flag             */
   char  aux1dir;               /* AUX1 trigger direction flag             */
   char  aux2dir;               /* AUX2 trigger direction flag             */
   short int veog_n;            /* Number of points per VEOG waveform      */
   short int heog_n;            /* Number of points per HEOG waveform      */
   short int aux1_n;            /* Number of points per AUX1 waveform      */
   short int aux2_n;            /* Number of points per AUX2 waveform      */
   short int veogmaxcnt;        /* Number of observations per point - VEOG */
   short int heogmaxcnt;        /* Number of observations per point - HEOG */
   short int aux1maxcnt;        /* Number of observations per point - AUX1 */
   short int aux2maxcnt;        /* Number of observations per point - AUX2 */
   char   veogmethod;           /* Method used to correct VEOG             */
   char   heogmethod;           /* Method used to correct HEOG             */
   char   aux1method;           /* Method used to correct AUX1             */
   char   aux2method;           /* Method used to correct AUX2             */
   float  AmpSensitivity;       /* External Amplifier gain                 */
   char   LowPass;              /* Toggle for Amp Low pass filter          */
   char   HighPass;             /* Toggle for Amp High pass filter         */
   char   Notch;                /* Toggle for Amp Notch state              */
   char   AutoClipAdd;          /* AutoAdd on clip                         */
   char   baseline;             /* Baseline correct flag                   */
   float  offstart;             /* Start point for baseline correction     */
   float  offstop;              /* Stop point for baseline correction      */
   char   reject;               /* Auto reject flag                        */
   float  rejstart;             /* Auto reject start point                 */
   float  rejstop;              /* Auto reject stop point                  */
   float  rejmin;               /* Auto reject minimum value               */
   float  rejmax;               /* Auto reject maximum value               */
   char   trigtype;             /* Trigger type                            */
   float  trigval;              /* Trigger value                           */
   char   trigchnl;             /* Trigger channel                         */
   short int trigmask;          /* Wait value for LPT port                 */
   float trigisi;               /* Interstimulus interval (INT trigger)    */
   float trigmin;               /* Min trigger out voltage (start of pulse)*/
   float trigmax;               /* Max trigger out voltage (during pulse)  */
   char  trigdir;               /* Duration of trigger out pulse           */
   char  Autoscale;             /* Autoscale on average                    */
   short int n2;                /* Number in group 2 (MANOVA)              */
   char  dir;                   /* Negative display up or down             */
   float dispmin;               /* Display minimum (Yaxis)                 */
   float dispmax;               /* Display maximum (Yaxis)                 */
   float xmin;                  /* X axis minimum (epoch start in sec)     */
   float xmax;                  /* X axis maximum (epoch stop in sec)      */
   float AutoMin;               /* Autoscale minimum                       */
   float AutoMax;               /* Autoscale maximum                       */
   float zmin;                  /* Z axis minimum - Not currently used     */
   float zmax;                  /* Z axis maximum - Not currently used     */
   float lowcut;                /* Archival value - low cut on external amp*/
   float highcut;               /* Archival value - Hi cut on external amp */
   char  common;                /* Common mode rejection flag              */
   char  savemode;              /* Save mode EEG AVG or BOTH               */
   char  manmode;               /* Manual rejection of incomming data      */
   char  ref[10];               /* Label for reference electode            */
   char  Rectify;               /* Rectification on external channel       */
   float DisplayXmin;           /* Minimun for X-axis display              */
   float DisplayXmax;           /* Maximum for X-axis display              */
   char  phase;                 /* flag for phase computation              */
   char  screen[16];            /* Screen overlay path name                */
   short int CalMode;           /* Calibration mode                        */
   short int CalMethod;         /* Calibration method                      */
   short int CalUpdate;         /* Calibration update rate                 */
   short int CalBaseline;       /* Baseline correction during cal          */
   short int CalSweeps;         /* Number of calibration sweeps            */
   float CalAttenuator;         /* Attenuator value for calibration        */
   float CalPulseVolt;          /* Voltage for calibration pulse           */
   float CalPulseStart;         /* Start time for pulse                    */
   float CalPulseStop;          /* Stop time for pulse                     */
   float CalFreq;               /* Sweep frequency                         */
   char  taskfile[34];          /* Task file name                          */
   char  seqfile[34];           /* Sequence file path name                 */
   char  SpectMethod;           /* Spectral method                         */
   char  SpectScaling;          /* Scaling employed                        */
   char  SpectWindow;           /* Window employed                         */
   float SpectWinLength;        /* Length of window %                      */
   char  SpectOrder;            /* Order of Filter for Max Entropy method  */
   char  NotchFilter;           /* Notch Filter in or out                  */
   char  unused[11];            /* Free space                              */
   short  FspStopMethod;        /* FSP - Stoping mode                      */
   short  FspStopMode;          /* FSP - Stoping mode                      */
   float FspFValue;             /* FSP - F value to stop terminate         */
   short int FspPoint;          /* FSP - Single point location             */
   short int FspBlockSize;      /* FSP - block size for averaging          */
   unsigned short FspP1;        /* FSP - Start of window                   */
   unsigned short FspP2;        /* FSP - Stop  of window                   */
   float FspAlpha;              /* FSP - Alpha value                       */
   float FspNoise;              /* FSP - Signal to ratio value             */
   short int FspV1;             /* FSP - degrees of freedom                */
   char  montage[40];           /* Montage file path name                  */
   char  EventFile[40];         /* Event file path name                    */
   float fratio;                /* Correction factor for spectral array    */
   char  minor_rev;             /* Current minor revision                  */
   short int eegupdate;         /* How often incomming eeg is refreshed    */
   char   compressed;           /* Data compression flag                   */
   float  xscale;               /* X position for scale box - Not used     */
   float  yscale;               /* Y position for scale box - Not used     */
   float  xsize;                /* Waveform size X direction               */
   float  ysize;                /* Waveform size Y direction               */
   char   ACmode;               /* Set SYNAP into AC mode                  */
   unsigned char CommonChnl;    /* Channel for common waveform             */
   char   Xtics;                /* Scale tool- 'tic' flag in X direction   */
   char   Xrange;               /* Scale tool- range (ms,sec,Hz) flag X dir*/
   char   Ytics;                /* Scale tool- 'tic' flag in Y direction   */
   char   Yrange;               /* Scale tool- range (uV, V) flag Y dir    */
   float  XScaleValue;          /* Scale tool- value for X dir             */
   float  XScaleInterval;       /* Scale tool- interval between tics X dir */
   float  YScaleValue;          /* Scale tool- value for Y dir             */
   float  YScaleInterval;       /* Scale tool- interval between tics Y dir */
   float  ScaleToolX1;          /* Scale tool- upper left hand screen pos  */
   float  ScaleToolY1;          /* Scale tool- upper left hand screen pos  */
   float  ScaleToolX2;          /* Scale tool- lower right hand screen pos */
   float  ScaleToolY2;          /* Scale tool- lower right hand screen pos */
   short int port;              /* Port address for external triggering    */
   long  NumSamples;            /* Number of samples in continous file     */
   char  FilterFlag;            /* Indicates that file has been filtered   */
   float LowCutoff;             /* Low frequency cutoff                    */
   short int LowPoles;          /* Number of poles                         */
   float HighCutoff;            /* High frequency cutoff                   */
   short int HighPoles;         /* High cutoff number of poles             */
   char  FilterType;            /* Bandpass=0 Notch=1 Highpass=2 Lowpass=3 */
   char  FilterDomain;          /* Frequency=0 Time=1                      */
   char  SnrFlag;               /* SNR computation flag                    */
   char  CoherenceFlag;         /* Coherence has been  computed            */
   char  ContinousType;         /* Method used to capture events in *.cnt  */
   long  EventTablePos;         /* Position of event table                 */
   float ContinousSeconds;      /* Number of seconds to displayed per page */
   long  ChannelOffset;         /* Block size of one channel in SYNAMPS    */
   char  AutoCorrectFlag;       /* Autocorrect of DC values                */
   unsigned char DCThreshold;   /* Auto correct of DC level                */
} SETUP;

typedef struct {
   char Teeg;                   /* Either 1 or 2                           */
   long Size;                   /* Total length of all the events          */
   long Offset;                 /* Hopefully always 0                      */
} TEEG;

typedef struct {
   unsigned short StimType;     /* range 0-65535                           */
   unsigned char  KeyBoard;     /* range 0-11 corresponding to fcn keys +1 */
   char KeyPad_Accept;          /* 0->3 range 0-15 bit coded response pad  */
                                /* 4->7 values 0xd=Accept 0xc=Reject       */
   long Offset;                 /* file offset of event                    */
} EVENT1;

typedef struct{
   unsigned short StimType;     /* range 0-65535                           */
   unsigned char  KeyBoard;     /* range 0-11 corresponding to fcn keys +1 */
   char KeyPad_Accept;          /* 0->3 range 0-15 bit coded response pad  */
                                /* 4->7 values 0xd=Accept 0xc=Reject       */
   long Offset;                 /* file offset of event                    */
   short Type;
   short Code;
   float Latency;
   char EpochEvent;
   char Accept2;
   char Accuracy;
} EVENT2;

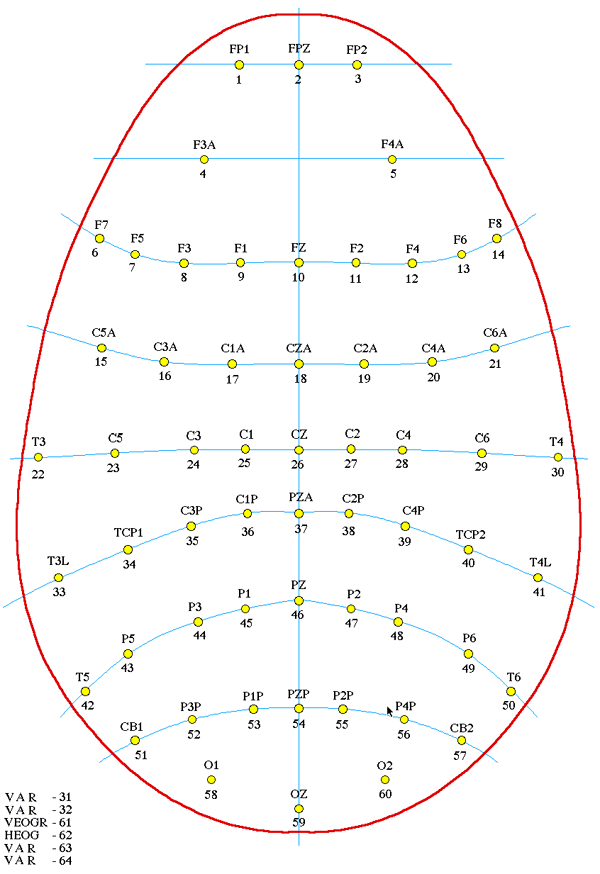

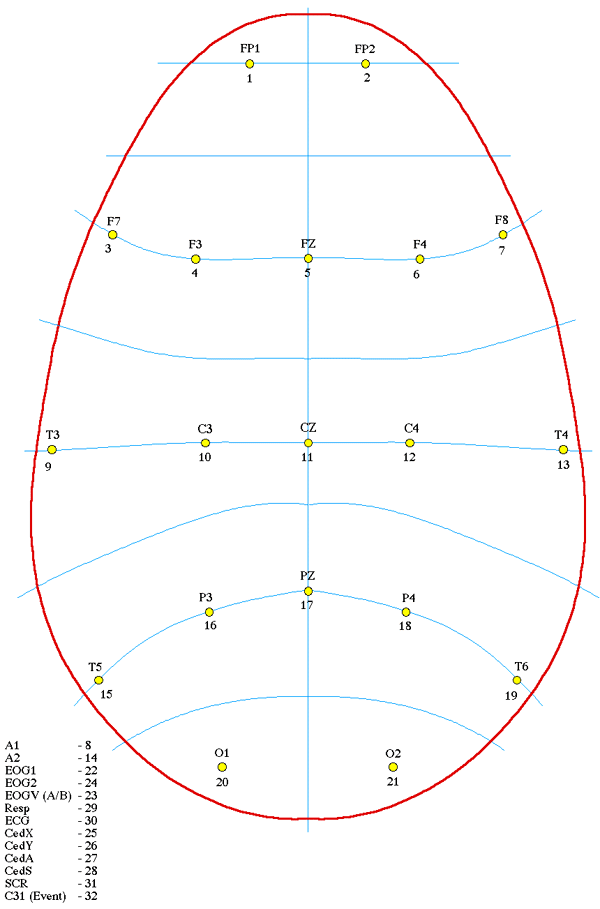

Electrode position as used by Brain Dynamics Laboratory, 1996/1997




Westmead EEG file format

August 1997

The following describes the important aspects of the EEG data files from the Department of Medical Physics and Cognitive Neuroscience Unit, Westmead Hospital, Westmead, NSW 2145, Australia.

The files consist a ID line followed by a header followed by the actual data section. The ID and header is ascii/readable text while the EEG data is binary, simply a series of 2 byte signed ints (usually referred to in C as "short int"). Note that while the files have an ASCII header they must be FTPed or otherwise transferred in binary mode to preserve the EEG data part. While the mixed ASCII/BINARY nature makes dealing with these files a bit awkward at times, it is often convenient to browse the header using a text editor or just using "more".

Description Example Source example
First line

It consists of two items, a version number and offset. The offset is the number of 512 bytes chunks in the header.

The current format descriptor is EEG2.

The previous EEG1 format differs only in that the binary data was stored in a 1's complement offset format.

EEG2   15
char ident[32];
int offset;
FILE *fptr;

if (fscanf(fptr,"%s %ld",ident,&offset) != 2) {
   report unexpected result
}
Header

"offset" * 512 in length

This consist of a number of variables providing additional quantitative and qualitative values. Most are obvious from their descriptors in square brackets [].

The ones of particular interest are:
   [NumChans]
   [Label]
   [SamRate]

Lines are terminated with <CR><LF>

In detail, each variable is represented in the header by:

1
The variable's identifying name. This consists of as many as 11 characters enclosed by square brackets. The left bracket must be in the first column. In reading the variable's name, leading and trailing blanks are removed, case is ignored, and control characters are removed.

2
A description of the variable. This is indicated by "desc=3D" followed by as many as 39 characters

3
The dimensions of the compressed array in the form: "dimensions=3D dim1 dim2". The first dimension equals the number of channels, or else 1 (if the value is the same for each channel). The second dimension equals the number of segments, or else 1 (if the value is the same for each segment).

4
The data type in the form: "type=3Ddata_type", where data_type can be any of the types defined in ac_set.h under enum FIELDTYPE. This item is optional, as there are very likely correct defaults set by any program that reads these data files.

5
An introduction to the array list: "weight+value=3D".

6
The array of weights and values. There should be dim1 x dim2 lines. The values for segment 0 are listed first, then for segment 1, and so on. Each line consists of a weight and a value. The weight may be 0, in which case, no value is present or necessary. Otherwise the weight is >0 and a value is specified. The value may be of any of the various types recognised by this set of programs - see item 4. There is a function decode() that decodes any of these standard formats. Concerning weights, for string and boolean variables, there is no useful distinction between weights of 1 and >1. However for numeric variables, the value of weight is important when combining data sets. Then it is necessary to form weighted averages, hence the importance of including a weight with each value.

The variables may be arranged in any order within the header, with the exception of the two variables NumChans and NumSegs that MUST precede any multidimensional variable. This is because with such array-type variables, one or both of the two dimensions specified in item 3 will be >1 and MUST match NumChans or NumSegs.



Finally, within the header part of the data file, blank lines may be inserted anywhere, and are skipped when reading the file. Also, from the end of the header to the beginning of the binary data there is a variable number of tilde (~) characters. They are inserted as padding, in order that the binary data begins on an IO block boundary (multiple of 512 bytes).

[ProgramType]
  desc=Identifies acquisition program
  dimension=1 1
  weight+value=
    1 aep

[PatName    ]
  desc=Subject's name
  dimension=1 1
  weight+value=
    1 _________ ___

[PatID      ]
  desc=Subject's ID
  dimension=1 1
  weight+value=
    1 MS044

[StartTime  ]
  desc=Start time of study
  dimension=1 1
  weight+value=
    1 17 Apr 96 13:16:51

[NumChans   ]
  desc=Number of data channels
  dimension=1 1
  weight+value=
    1 32

[NumSegs    ]
  desc=Number of data segments
  dimension=1 1
  weight+value=
    1  1

[DataType   ]
  desc=Identifies source of data
  dimension=32 1
  weight+value=
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 POT
    1 CED
    1 CED
    1 CED
    1 BIT
    1 POT
    1 POT
    1 SCR
    1 BIT

[Label      ]
  desc=Identifies channel
  dimension=32 1
  weight+value=
    1 Fp1
    1 Fp2
    1 F7
    1 F3
    1 Fz
    1 F4
    1 F8
    1 A1
    1 T3
    1 C3
    1 Cz
    1 C4
    1 T4
    1 A2
    1 T5
    1 P3
    1 Pz
    1 P4
    1 T6
    1 O1
    1 O2
    1 EOG1
    1 EOGv
    1 EOG2
    1 CedX
    1 CedY
    1 CedA
    1 CedS
    1 Resp
    1 ECG
    1 SCR
    1 C31

[HWGain     ]
  desc=Total HW gain
  dimension=32 1
  weight+value=
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1   200
    1     1
    1     1
    1     1
    0
    1    30
    1    30
    1    30
    0

[LCFilt     ]
  desc=Low Cut filter setting
  dimension=32 1
  weight+value=
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    1 DC
    0
    0
    0
    0
    1 DC
    1 DC
    1 DC
    0

[HCFilt     ]
  desc=High Cut filter setting
  dimension=32 1
  weight+value=
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 250.0000
    1 50.0000
    1 50.0000
    1 50.0000
    1 250.0000

[HWUnit     ]
  desc=Unit associated with raw signal
  dimension=32 1
  weight+value=
    1	uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 CU
    1 CU
    1 CU
    1
    1 uV
    1 uV
    1 mV
    1

[PlotRow    ]
  desc=Row in which to plot data
  dimension=32 1
  weight+value=
    1  0
    1  1
    1  2
    1  3
    1  4
    1  5
    1  6
    1  7
    1  8
    1  9
    1 10
    1 11
    1 12
    1 13
    1 14
    1 15
    1 16
    1 17
    1 18
    1 19
    1 20
    1 21
    1 22
    1 23
    1 24
    1 25
    1 26
    1 27
    1 28
    1 29
    1 30
    1 31

[PlotCol    ]
  desc=Colour with which to plot data
  dimension=32 1
  weight+value=
    1 10
    1 10
    1 14
    1 10
    1 12
    1 10
    1 14
    1 10
    1 14
    1 10
    1 12
    1 10
    1 14
    1 10
    1 14
    1 10
    1 12
    1 10
    1 14
    1 10
    1 10
    1  2
    1  2
    1  2
    1 11
    1 11
    1 11
    1 11
    1  2
    1  4
    1 10
    1 15

[PlotGain   ]
  desc=Plot scale, as a power of 2
  dimension=32 1
  weight+value=
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 14
    1 10
    0
    1  9
    1 10
    1 12
    0

[Positive   ]
  desc=Up, if data is to be plotted +ve up
  dimension=32 1
  weight+value=
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1 Down
    1  Up
    1  Up
    1  Up
    0
    1  Up
    1  Up
    1  Up
    0

[Clipping   ]
  desc=Yes, if plot clipping required
  dimension=32 1
  weight+value=
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    1  No
    0
    1  No
    1  No
    1  No
    0

[CalFac     ]
  desc=Scale factor applied to raw signal
  dimension=32 1
  weight+value=
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 1.0000
    1 0.3250
    1 0.2000
    1 0.0269
    0
    1 1.0000
    1 1.0000
    1 0.3027
    0

[CalUnit    ]
  desc=Unit associated with scaled data
  dimension=32 1
  weight+value=
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 uV
    1 deg
    1 deg
    1 deg
    0
    1 uV
    1 uV
    1 ms
    0

[SamRate    ]
  desc=Sampling rate in Hz
  dimension=1 1
  weight+value=
    1 250.00000000

[RefSite    ]
  desc=Reference site for EEG channels
  dimension=1 1
  weight+value=
    1 LEL

[PatComments]
  desc=Any comments
  dimension=1 1
  weight+value=
    1

[TagF1      ]
  desc=Meaning of F1 marker
  dimension=1 1
  weight+value=
    1

[TagF2      ]
  desc=Meaning of F2 marker
  dimension=1 1
  weight+value=
    1

[TagF3      ]
  desc=Meaning of F3 marker
  dimension=1 1
  weight+value=
    1

[TagF4      ]
  desc=Meaning of F4 marker
  dimension=1 1
  weight+value=
    1

There are many ways to parse the desired fields from this header. For example to extract the number of channels.

int found;
int nchannels;
char s[64];

rewind(fptr);
found = FALSE;
while (fscanf(fptr,"%s",s) == 1) {
   if (strstr(s,"[NumChans   ]") != NULL) {
      SkipUntil(fptr,'\n');
      SkipUntil(fptr,'\n');
      SkipUntil(fptr,'\n');
      SkipUntil(fptr,'\n');
      if ((fscanf(fptr,"%s %d",s,&nchannels) != 2) {
          Handle read error
      }
      found = TRUE;
      break;
   }
}
if (!found) {
   Handle case where the number of channels wasn't found
}
if (nchannels < 1 || nchannels > 64) {
   Handle unexpected number of channels
}
Samples - Binary data

Each sample is stored as a 2 byte signed integers (2's complement) in "little-endian" order (Byte swapping may be required). To calculate the total number of samples use:

nsamples = (size - 512*offset) / (2*nchannels)

where "size" is the total file size. ie: the file is made up of "offset" blocks, each 512 bytes in length. This is followed by "nsamples", each one made up of "nchannels" 2 byte samples.

Typically, the last channel (C31) is for the event markers.
Example inappropriate
fseek(fptr,512L*offset,SEEK_SET);

for (i=0;i<nsamples;i++) {
   for (j=0;j<nchannels;j++) {
      if (!ReadShort(fptr,&samples[i].electrode[j],TRUE)) {
         Handle read error
      }
   }
}

/*
   Read a possibly byte swapped short
*/
int ReadShort(FILE *fptr,short n,int swap)
{
   unsigned char *cptr,tmp;

   if (fread(n,2,1,fptr) != 1)
      return(FALSE);
   if (swap) {
      cptr = (unsigned char *)n;
      tmp = cptr[0];
      cptr[0] = cptr[1];
      cptr[1] =tmp;
   }
   return(TRUE);
}

Basic C source code that takes a Westmead EEG file and converts it into an ascii file is given here: westmead2ascii.c. It can be readily modified and used as the basis of a converter to meet you specific needs.

Electrode positions as used by Westmead Hospital, 1995 -> 1999.




ASCII format for EEG signals

September 1997
The following describes an ascii file format for storing multichannel EEG signals. This is by no means intended to be an ideal format for archiving such data but rather a convenient, machine independent format for exploratory analysis and data interchange.

The file consists of two header lines followed by the data. The first header line has 4 constants, the number of channels, the sampling frequency (Hz), the number of events, and the number of samples. The second header line consists of the column names for the data that follows. If the data is raw EEG signals then the columns should be the electrode names. The first two columns of the data section are predefined, they are the sample number and the event code. The remaining columns contain the samples from each channel (electrode).

Note:

  • The first column, the sample number, need not start at 0. For example, it may be used to identify where in a longer recording a subset was derived.
  • How the event code is encoded is not specified except that 0 represents the absence of an event.
  • The units and numerical datatype of the actual samples isn't specified. For raw recording they might be straight numbers from the ADC, for processed data they might be floating point numbers in microvolts.
  • Each value is separated by "standard" C white space, for example, a single space, multiple spaces, a tab character.
Example

The first few representative lines of such a file might look like this:

62 500 0 1000
sample event FP1 FPZ FP2 F3A F4A F7 F5 F3 F1 FZ F2 F4 F6 F8 C5A C3A   . . .
0 0 -1746 -1717 -1716 -1710 -1676 -1528 -1738 -1493 -1736 -1324 -1432 . . .
1 0 -1962 -1891 -1988 -1864 -1717 -1663 -1853 -1583 -1746 -1378 -1505 . . .
2 0 -2112 -1952 -2128 -1936 -1688 -1748 -1867 -1612 -1786 -1394 -1548 . . .
3 0 -2063 -1857 -2032 -1853 -1600 -1694 -1774 -1547 -1802 -1373 -1535 . . .
4 0 -1767 -1595 -1697 -1551 -1438 -1433 -1552 -1406 -1688 -1296 -1437 . . .
5 0 -1315 -1222 -1229 -1128 -1219 -1032 -1196 -1176 -1430 -1172 -1281 . . .
6 0 -898 -887 -822 -802 -1062 -683 -838 -976 -1144 -1067 -1148 -1139  . . .
7 0 -757 -799 -692 -772 -1042 -571 -676 -940 -1051 -1079 -1143 -1147  . . .
  :   :    :    :    :    :    :    :    :    :    :    :    :    :
  :   :    :    :    :    :    :    :    :    :    :    :    :    :
  :   :    :    :    :    :    :    :    :    :    :    :    :    :




Electrocap Coordinates

Compiled by Per Line
January 1997

BSE                   Neuroscan         Westmead    Coordinates
1-64   0-63   Name    EEG     Phys                  x       y       z
--------------------------------------------------------------------------
 2      1     FP1      0         1         1       -91.5   -24.5    -7.0
 3      2     FPZ      1         2        --       -94.8     0.0    -6.1
 4      3     FP2      2         3         2       -91.5    24.5    -7.0
 7      6     F3A      3         4        --       -82.0   -38.3    28.9
11     10     F4A      4         5        --       -82.0    38.3    29.9
13     12     F7       5         6         3       -54.5   -77.8     2.8
14     13     F5       6         7        --       -54.8   -70.2    33.1
15     14     F3       7         8         4       -62.3   -52.3    49.1
16     15     F1       8         9        --       -64.2   -29.9    63.3
17     16     FZ       9        10         5       -61.2     0.0    72.7
18     17     F2      10        11        --       -64.2    29.9    63.3
19     18     F4      11        12         6       -62.3    52.3    49.1
20     19     F6      12        13        --       -54.8    70.2    33.1
21     20     F8      13        14         7       -54.5    77.8     2.8
22     21     C5A     14        15        --       -34.8   -82.6    41.3
23     22     C3A     15        16        --       -34.8   -60.2    64.7
24     23     C1A     16        17        --       -34.8   -30.1    76.6
25     24     CZA     17        18        --       -34.8     0.0    88.5
26     25     C2A     18        19        --       -34.8    30.1    76.6
27     26     C4A     19        20        --       -34.8    60.2    64.7
28     27     C6A     20        21        --       -34.8    82.6    41.3
29     28     T3      21        22         9         0.0   -94.6     8.8
30     29     C5      22        23        --         0.0   -83.6    45.2
31     30     C3      23        24        10         0.0   -61.2    72.7
32     31     C1      24        25        --         0.0   -33.0    89.1
33     32     CZ      25        26        11         0.0     0.0    95.0
34     33     C2      26        27        --         0.0    33.0    89.1
35     34     C4      27        28        12         0.0    61.2    72.7
36     35     C6      28        29        --         0.0    83.6    45.2
37     36     T4      29        30        13         0.0    94.6     8.8
--     --     EMGR    --        31        --          --      --      --
--     --     EMGL    --        32        --          --      --      --
38     37     T3L     30        33        --        32.4   -89.3    -1.8
39     38     TCP1    31        34        --        34.8   -82.6    41.3
40     39     C3P     32        35        --        34.8   -60.2    64.7
--     --     C1P     33        36        --        34.8   -30.1    76.6
41     40     PZA     34        37        --        34.8     0.0    88.5
--     --     C2P     35        38        --        34.8    30.1    76.6
42     41     C4P     36        39        --        34.8    60.2    64.7
43     42     TCP2    37        40        --        34.8    82.6    41.3
44     43     T4L     38        41        --        32.4    89.3    -1.8
45     44     T5      39        42        15        54.5   -77.8     2.8
54     53     P5      40        43        --        54.8   -70.1    33.1
47     46     P3      41        44        16        57.5   -57.5    49.1
48     47     P1      42        45        --        64.2   -29.9    63.3
49     48     PZ      43        46        17        61.2     0.0    72.7
50     49     P2      44        47        --        64.2    29.9    63.3
51     50     P4      45        48        18        57.5    57.5    49.1
59     58     P6      46        49        --        54.8    70.1    33.1
53     52     T6      47        50        19        54.5    77.8     2.8
60     59     CB1     48        51        --        77.3   -54.1   -10.6
55     54     P3P     49        52        --        89.4   -40.3    20.9
56     55     P1P     50        53        --        87.4   -23.4    28.9
--     --     PZP     51        54        --        87.4     0.0    28.9
57     56     P2P     52        55        --        87.4    23.4    28.9
58     57     P4P     53        56        --        89.4    40.3    20.9
64     63     CB2     54        57        --        77.3    54.1   -10.6
61     60     O1      55        58        20        91.6   -24.5    -6.1
62     61     OZ      56        59        --        95.0     0.0    -1.8
63     62     O2      57        60        21        91.6    24.5    -6.1
--     --     VEOGR   --        61        --          --      --      --
--     --     HEOG    --        62        --          --      --      --
--     --     NC      --        63        --          --      --      --
--     --     NC      --        64        --          --      --      --
--     --     A1      --        --         8          --      --      --
--     --     A2      --        --        14          --      --      --
--     --     EOG1    --        --        22          --      --      --
--     --     EOGv    --        --        23          --      --      --
--     --     EOG2    --        --        24          --      --      --
--     --     CedX    --        --        25          --      --      --
--     --     CedY    --        --        26          --      --      --
--     --     CedA    --        --        27          --      --      --
--     --     CedS    --        --        28          --      --      --
--     --     Resp    --        --        29          --      --      --
--     --     ECG     --        --        30          --      --      --
--     --     SCR     --        --        31          --      --      --
--     --     C31     --        --        32          --      --      --

International 10-20 electrode position standard.
